Analyzing time series data with Python and Influxdb, using public domain datasets

These days you get time series data from multiple sources; you may also argue than using a traditional relational database may not work well with this data because of the following:

  • Every datasource requires a custom schema; This means you need to spend more time deciding how to store your data, and if there are changes on the underlying data source then you may have to alter your table schemas
  • A traditional relational database doesn't expire the data; For most time series data you may only want to keep a certain window and then discard the rest automatically
  • New contenders in this are had optimized their storage format to make it fast for multiple clients to write data, and also to read the latest data; you may recall how relational databases worry much more about data duplicates, row lock contention.

In this tutorial I will show you how to use Influxdb; In particular I like it because it offers integration with other tools out of the box (like Grafana, Python3) and it has a powerful yet simple language to run queries called flux.

What you will require for this tutorial

  • A docker or podman installation, so you can run the Influxdb; you can also do a bare metal installation, but I won't cover that here and instead will use Podman.
  • Influxdb 2.4.0 or better, we will use the Flux language on our queries, instead of FluxQL.
  • A linux distribution (I used Fedora Linux)
  • Python3 and some experience writing scripts.
  • Basic knowledge of relational databases like MariaDB can be useful, but it is definitely not required to use Flux.

Running an Influxdb server from a container

This is maybe the easiest way to get you started; We will use an external volume to persist the data across container reboots and upgrades (please check the container page to see all the possible options):

```shell= podman pull influxdb:latest podman run --detach --volume /data/influxdb:/var/lib/influxdb --volumne /data:/data:rw --name influxdb_raspberrypi --restart always --publish 8086:8086 influxdb:latest podman logs --follow influxdb_raspberrypi


Also, we are mapping an additional volume called /data directory inside the container, to import some CSV files later.

Next go to the machine where you are running influxdb (say http://localhost:8086) and [complete the installation steps](https://docs.influxdata.com/influxdb/v2.4/install/) by:
1. Creating a new user.
2. Creating a [bucket](https://docs.influxdata.com/influxdb/v2.4/organizations/buckets/) (equivalent of a relational database table), with no expiration where we will put our data. We will call it USTS (Underground Storage Tanks) for reasons you will see below.

![](create_bucket.png)

3. Creating a read/write API token for that works only on the UST buckets.
![](create_api_token.png)

The API token will look similar to this: ```nFIaywYgg0G6oYtZCDZdp0StZqYmz4eYg23KGKcr5tau05tb7T2DY-LQSIgRK66QG9mkkKuK2nNCoIKJ0zoyng==```

Keep it safe, as it will be used to read/ write data into your USTS bucket.

# Working with data sets

On this tutorial I will use publicly available data from the [Connection Data Portal](https://data.ct.gov/).

Specifically we will use the [Underground Storage Tanks (USTs) - Facility and Tank Details](https://data.ct.gov/api/views/utni-rddb/rows.csv?accessType=DOWNLOAD): The underground storage tank regulations and the Connecticut underground storage tank enforcement program have been in effect since November 1985. This list is based on notification information submitted by the public since 1985, and is updated weekly.

I like this dataset for the following reasons:

* Relatively big dataset, 49.1K rows and 27 columns. This will require some data normalization, and large data import techniques.
* It has data in the form of time series (Last Used Date column)
* Also has geographical details (latitude and longitude coordinates), which we can use to run some interesting queries using the geolocation experimental features.

You can grab a copy with curl, for example:

```shell
[josevnz@dmaf5 influxdb_intro]$ curl --location --silent --fail --show-error --output ~/Downloads/ust.csv 'https://data.ct.gov/api/views/utni-rddb/rows.csv?accessType=DOWNLOAD'
[josevnz@dmaf5 influxdb_intro]$ wc -l ~/Downloads/ust.csv
49090 /home/josevnz/Downloads/ust.csv

I'll show you next how you can import your data into your bucket and some issues you may face

Importing the data

It is a good practice to ask yourself what kind of questions you can answer with the data before even deciding that to import and what to ignore; A few examples we will try to answer soon:

  • Total number of tanks reported (active, inactive)
  • Number of inactive tanks by installation time
  • Number of tanks over type, grouped by substance type
  • Number of tanks closer to Hartford, CT

Based on that, we check the available columns and make a quick rain check on what to ignore during the import process:

Number Column Name Type Remarks
1 UST Site ID Number Plain Text Ignoring
2 Site Name Plain Text Ignoring
3 Site Address Plain Text Ignoring, do not care about street
4 Site City Plain Text
5 Site Zip Plain Text Ignoring
6 Tank No. Plain Text Ignoring
7 Status of Tank Plain Text
8 Compartment Plain Text
9 Estimated Total Capacity (gallons) Number
10 Substance Currently Stored Plain Text
11 Last Used Date Date & Time
12 Closure Type Plain Text
13 Construction Type - Tank Plain Text
14 Tank Details Plain Text Ignoring
15 Construction Type - Piping Plain Text
16 Piping Details Plain Text Ignoring
17 Installation Date Date & Time Ignoring
18 Spill Protection Plain Text
19 Overfill Protection Plain Text
20 Tank Latitude Number
21 Tank Longitude Number
22 Tank Collection Method Plain Text Ignoring
23 Tank Reference Point Type Plain Text Ignoring
24 UST Site Latitude Number Ignoring, redundant
25 UST Site Longitude Number Ignoring, redundant
26 Site Collection Method Plain Text Ignoring
27 Site Reference Point Type Plain Text Ignoring, redundant

Let's take a peek on our data:

ST Site ID Number,Site Name,Site Address,Site City,Site Zip,Tank No.,Status of Tank,Compartment,Estimated Total Capacity (gallons),Substance Currently Stored,Last Used Date,Closure Type,Construction Type - Tank,Tank Details,Construction Type - Piping,Piping Details,Installation Date,Spill Protection,Overfill Protection,Tank Latitude,Tank Longitude,Tank Collection Method,Tank Reference Point Type,UST Site Latitude,UST Site Longitude,Site Collection Method,Site Reference Point Type
50-11456,Brewer Dauntless Marina,9 NOVELTY LN,ESSEX,06426,1,Permanently Closed,,4000,Gasoline,10/18/2018,Tank was Removed From Ground,Coated & Cathodically Protected Steel (sti-P3),Double Walled,Flexible Plastic,"Containment Sumps @ Dispensers,Containment Sumps @ Tanks,Double Walled,Metallic fittings isolated from soil and water",06/01/1999,Spill Bucket,Ball Float Device,41.350018,-72.385442,Address Matching,Approximate Location,41.350018,-72.385442,Address Matching,Approximate Location
106-1923,FOOD BAG #509,1652 BOSTON POST RD,OLD SAYBROOK,06475,D1,Permanently Closed,a,10000,Diesel,03/01/1998,Tank was Removed From Ground,Coated & Cathodically Protected Steel (sti-P3),,Rigid Fiberglass Reinforced Plastic,,02/01/1983,,,41.286115,-72.414762,Address Matching,Approximate Location,41.286115,-72.414762,Address Matching,Approximate Location

As our first take, we can use the Influxdb bulk importers using the line protocol; It basically means we help Influxdb to digest the data as follows:

  1. Inform what kind measure we are taking
  2. Choose the appropriate types for data types, like numbers, dates, geographical coordinates
  3. Choose what columns to skip

Using the CSV annotation is a way to go, but keep in mind it has limitations on how much you can manipulate the during the import process.

Then comes the decision on were and how to store the data; Influxdb has the concept of tags, fields and measurements on, explained on understanding-Influxdb-basics:

  • A bucket is nothing else but the database where the data will be stored
  • Influxdb stores data into measurements (Equivalent of a table on relational databases); Ours will be 'fuel_tanks'.
  • Tags: they are a combination of keys and values, they are used on indexes and their values do not change over time; think about them as metadata. In our case, 'Substance Currently Stored', 'Closure Type' are tags.
  • Fields: They change over time, they are not indexed. The 'Estimated Total Capacity (gallons)' total is a counter that will change over time.
  • And finally the time: It is the fabric of our data, we will be derived from the 'Report period' and not from the date 'updated fields'

If you notice, we have not one but 2 date time columns:

Number Column Name Type Remarks
11 Last Used Date Date & Time
17 Installation Date Date & Time

And, like any time series, there can only be one dateTime column.

So what to do? well, we can either split the data into 2 different buckets, depending on what we want to track, store one of them as a tag (useless as it makes it harder to use), or just ignore it completely.

For our analysis we care more about the last used date, so we will ignore the installation date;

How does that look for our data?

#constant measurement,fuel_tanks
#datatype ignore,ignore,ignore,tag,ignore,ignore,tag,tag,long,tag,dateTime:01/02/2006,tag,tag,ignore,tag,ignore,ignore,tag,tag,double,double,ignored,ignored,ignored,ignored,ignored,ignored
ID,Name,Address,City,Zip,TankNo,Status,Compartment,EstimatedTotalCapacity,SubstanceStored,LastUsed,ClosureType,ConstructionType,Details,ConstructionType,PipingDetails,InstallationDate,SpillProtection,OverfillProtection,Latitude,Longitude,CollectionMethod,ReferencePointType,USTLatitude,USTLongitude,CollectionMethod,ReferencePointType

The full command would look something like this (import_ust.sh):

/usr/bin/podman run --interactive --tty --volume "$header_file:/data/headers.csv" --volume "$csv_file:/data/tanks.csv" influxdb influx write "$dryrun" --bucket $BUCKET --org $ORG --format csv --skipHeader=1 --url "$url" --file "/data/headers.csv" --file "/data/tanks.csv"

If you run it in dry mode, you will be able to see the line protocol used to import the data:

fuel_tanks,City=BRISTOL,ConstructionType=Flexible\ Plastic,OverfillProtection=Audible\ Alarm,SpillProtection=Spill\ Bucket,Status=Currently\ In\ Use,SubstanceStored=Gasoline EstimatedTotalCapacity=15000i,Latitude=41.65641,Longitude=-72.91408
fuel_tanks,City=Hartford,ConstructionType=Flexible\ Plastic,OverfillProtection=Audible\ Alarm,SpillProtection=Spill\ Bucket,Status=Currently\ In\ Use,SubstanceStored=Diesel EstimatedTotalCapacity=1000i,Latitude=41.75538,Longitude=-72.680618
fuel_tanks,City=BERLIN,ConstructionType=Flexible\ Plastic,OverfillProtection=Audible\ Alarm,SpillProtection=Spill\ Bucket,Status=Currently\ In\ Use,SubstanceStored=Gasoline EstimatedTotalCapacity=10000i,Latitude=41.646417,Longitude=-72.729937
...

But even with this flexibility there are time when we have to write our custom importer.

When the CSV annotation falls short

The Influx write is pretty flexible but our data has a present a few challenges that cannot be solved by the tool:

  1. The data on this set is not sorted by installation date; this will affect the performance of our queries, so we need to sort the data before inserting it; The influx write command assumes (rightfully) than the data is coming in ordered fashion.
  2. City is in some case all caps, not consistent across the board.
  3. Last used date is missing in some data points; For our exercise we will assume last used date == current date if the tank is still in use
  4. And some tanks that were decommissioned only have the ZIP code, but no coordinates; No problem, will use uszipcode to get the latitude and longitude.

I ended writing a custom importer script (import_ust.py) to handle those cases with grace:

asciicast

Running some queries

Finally, time to run a few queries

Total number of tanks reported (active, inactive)

from(bucket: "USTS")
  |> range(start: -100y)
  |> filter(fn: (r) => r["_measurement"] == "fuel_tanks")
  |> filter(fn: (r) => r._field == "estimated_total_capacity")
  |> group(columns: ["status"])
  |> count(column: "_value")
  |> group(columns: ["_value", "status"], mode: "except")
  |> sort(columns: ["_value"], desc: true)

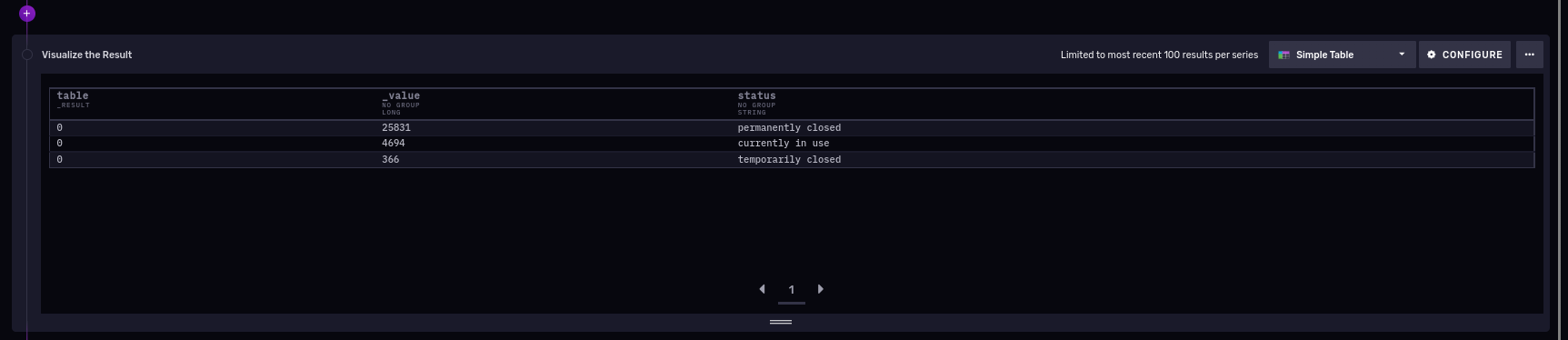

And we can see we have 3 categories, 25,831 permanently closed tanks in CT.

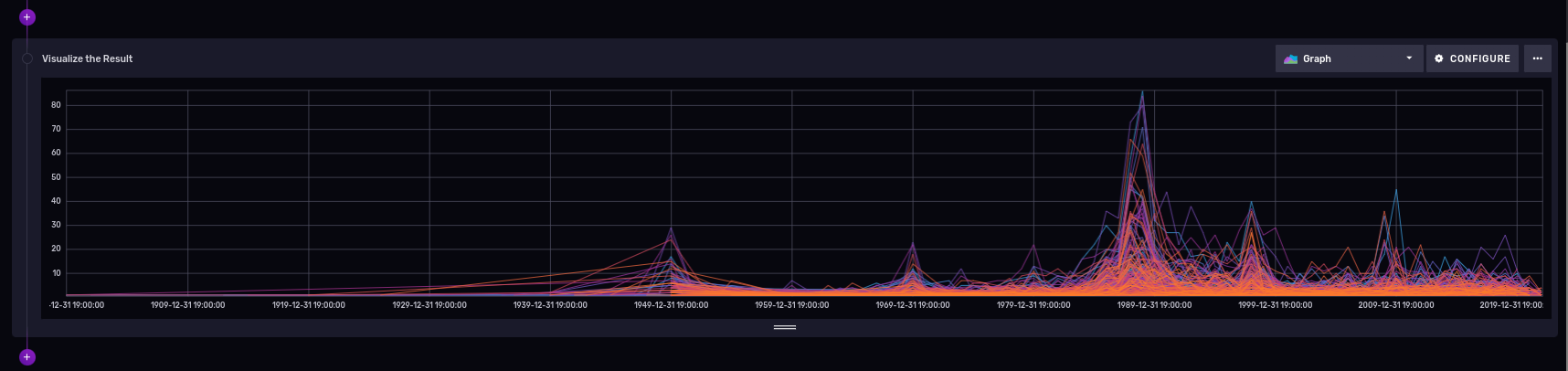

Number of closed fuel tanks all time, per city

So quite a bit of 'permanently closed', do they distribute differently over time?

from(bucket: "USTS")
    |> range(start: -100y)
    |> filter(fn: (r) => r._measurement == "fuel_tanks" and r._field == "estimated_total_capacity" and r.status == "permanently closed")
    |> truncateTimeColumn(unit: 1y)
    |> group(columns: ["city", "_time"])
    |> count(column: "_value")
    |> drop(columns: ["closure_time", "construction_type", "overfill_protection", "substance_stored", "s2_cell_id_token", "lat", "lon"])
    |> group(columns: ["city"])

This will generate a group of tables (towns) over time (e use the truncateTimeColumn to drop date and time granularity in our series data):

Winner has 80 tanks on the graphic.

Number of tanks, grouped by substance type

Gasoline? Oil? Let's see what is currently in use, last 15 years:

from(bucket: "USTS")
    |> range(start: -5y)
    |> filter(fn: (r) => r._measurement == "fuel_tanks" and r._field == "estimated_total_capacity" and r.status == "currently in use")
    |> group(columns: ["substance_stored"])
    |> count(column: "_value")
    |> drop(columns: ["city", "closure_tipe", "construction_type", "overfill_protection", "s2_cell_id", "lat", "lon", "_time", "spill_protection", "status"])
    |> group()
    |> sort(columns: ["_value"], desc: true)

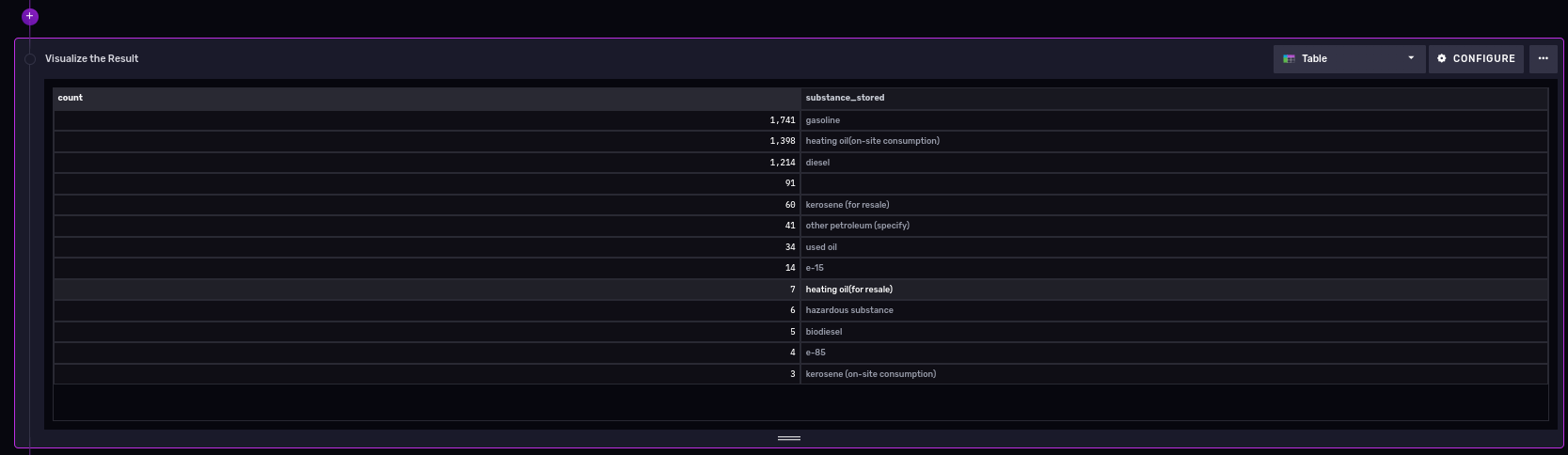

And the results:

Number of tanks closer to Hartford, CT

At the time of this writing (influx 2.4.0) this something that is labeled as experimental on Influxdb; native support of geolocation capabilities inside the database is a very useful feature, let's explore it next.

If you want to take a quick taste of the geolocation capabilities, you could run the following on a notebook:

import "influxdata/influxdb/sample"
import "experimental/geo"
sampleGeoData = sample.data(set: "birdMigration")
sampleGeoData
    |> geo.filterRows(region: {lat: 30.04, lon: 31.23, radius: 200.0}, strict: true)

First, a bit of geography:

Hartford, CT, USA Latitude and longitude coordinates are: 41.763710, -72.685097.

Count tanks within 30 miles (48.28032 Kilometers) radio from our Hartford coordinates, last 5 years:

import "experimental/geo"
from(bucket: "USTS")
    |> range(start: -5y)
    |> filter(fn: (r) => r._measurement == "fuel_tanks" or r._field == "lat" or r.field == "lon" and r.status == "currently in use")
    |> geo.filterRows(region: {lat: 41.763710, lon: -72.685097, radius: 48.28032}, strict: false)
    |> drop(columns: ["closure_time", "construction_type", "overfill_protection", "substance_stored", "s2_cell_id_token", "lat", "lon", "spill_protection", "s2_cell_id", "_time", "status", "closure_type"])
    |> count(column: "estimated_total_capacity")
    |> group(columns: ["city"])
    |> group()
    |> sort(columns: ["estimated_total_capacity"], desc: true)

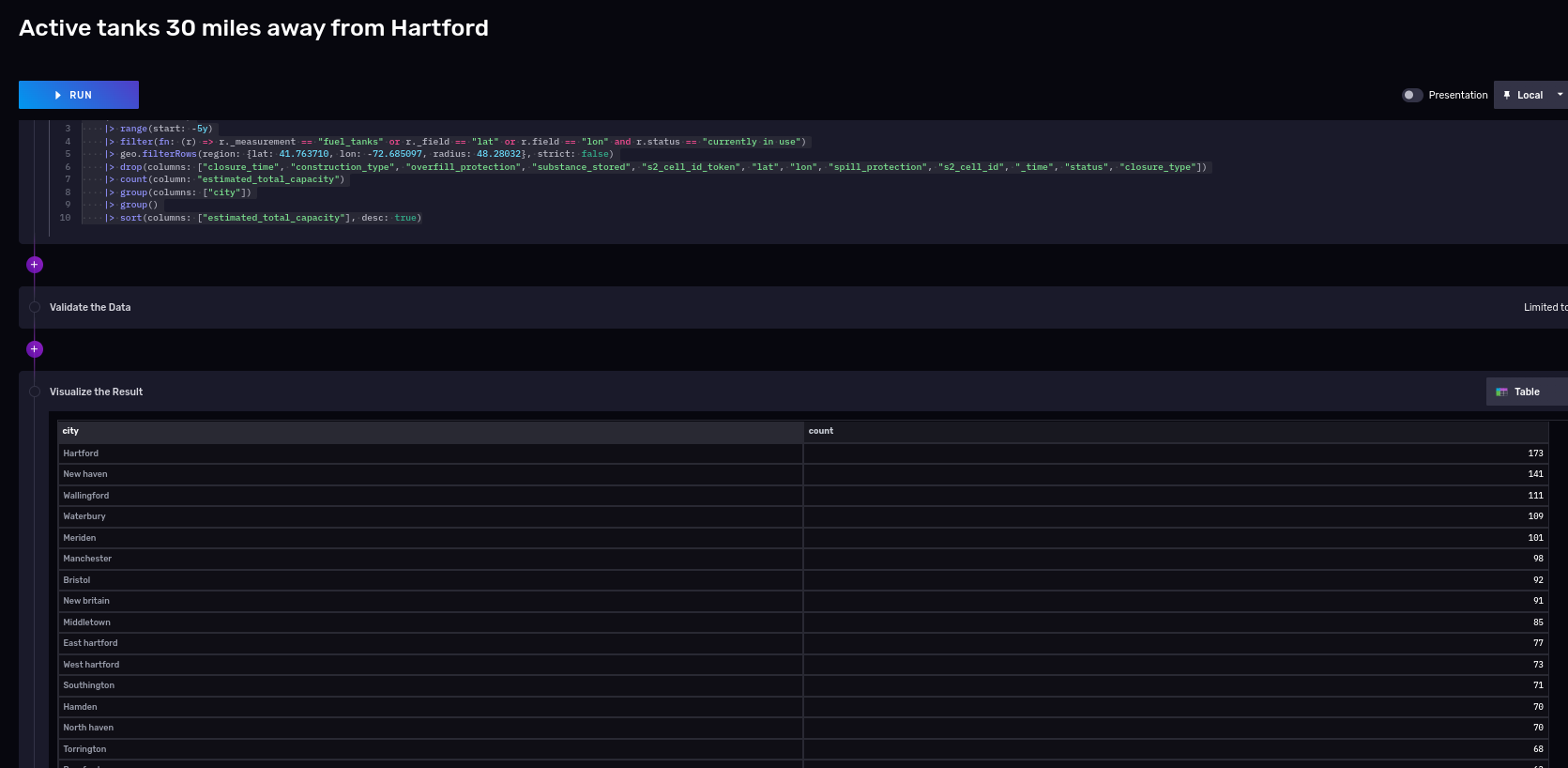

And here are the partial results:

You can also query the data from your favorite programming language

Let's take the query we used to get how many tanks per substance type ara available for a given period time.

from influxdb_client import InfluxDBClient

# You can generate a Token from the "Tokens Tab" in the UI
token = "pP25Y9broJWTPfj_nPpSnGtFsoUtutOKsxP-AynRXJAz6fZzdhLCD4NqJC0eg_ImKDczbMQxMSTuhmsJHN7ikA=="
org = "Kodegeek"
bucket = "USTS"

with InfluxDBClient(url="http://raspberrypi:8086", token=token, org=org) as client:
    query = """from(bucket: "USTS")
    |> range(start: -15y)
    |> filter(fn: (r) => r._measurement == "fuel_tanks" and r._field == "estimated_total_capacity" and r.status == "currently in use")
    |> group(columns: ["substance_stored"])
    |> count(column: "_value")
    |> drop(
        columns: [
            "city",
            "closure_type",
            "construction_type",
            "overfill_protection",
            "s2_cell_id",
            "lat",
            "lon",
            "_time",
            "spill_protection",
            "status",
        ],
    )
    |> group()
    |> sort(columns: ["_value"], desc: true)"""
    tables = client.query_api().query(query, org=org)
    for table in tables:
        for record in table.records:
            print(record)

We can do then tweak the Python code and make it better:

asciicast

Not so bad. Same can be done in other languages like Java, etc.

What is next?

  • The Connecticut OpenData portal has lots more interesting data sets you can download for free and learn about the state; I bet you have similar portals with public data where you live.
  • The Flux language is an interesting choice compared to plain SQL to analyze time series; I found it intuitive to use, but still learning a few kinks.
  • How fast is Influxdb compared other offerings? You need to decide for yourself. I haven't spent much time tuning settings, instead my initial interest was how easy is to use and integration with other applications, like Grafana.
  • If you write scripts in Python, you should definitely take a look at the examples from the Git repository.
  • And of course, check the source code in the repository for this tutorial.
